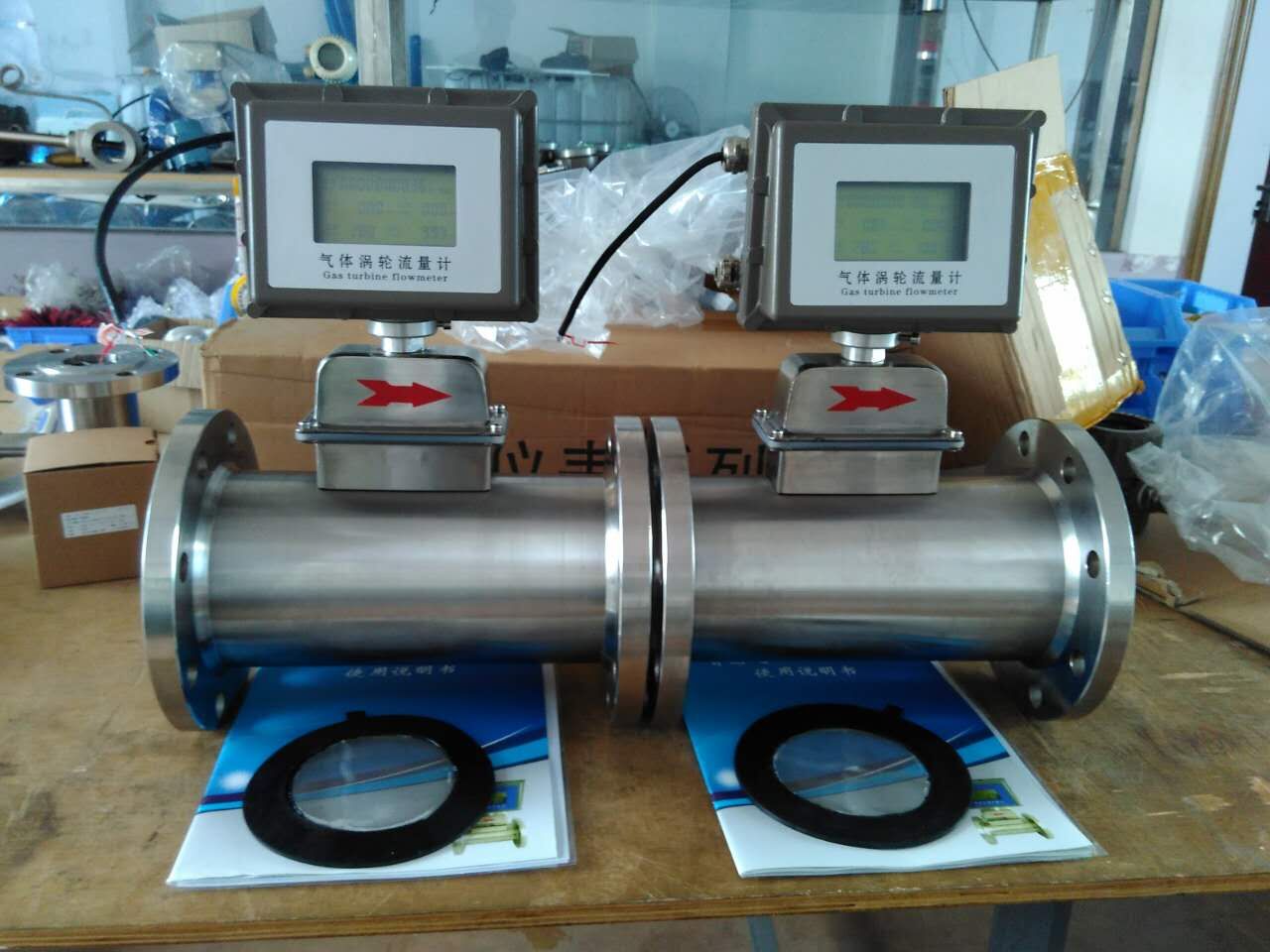

Smart Integrated Gas Turbine Flow Meter Installation Requirements The intelligent integrated gas turbine flowmeter is an integrated one that incorporates the advanced technology optimization design of flowmeters at home and abroad, integrates theories of gas mechanics, fluid mechanics, and electromagnetism, and integrates temperature, pressure, flow sensors, and intelligent flow integrators. A new generation of high-precision, high-reliability gas precision metering instruments. Gas turbine flowmeters have outstanding low-pressure and high-pressure metering performance. A variety of signal output methods and low sensitivity to fluid disturbances. Gas turbine meters are widely used in natural gas, coal Gas, liquefied gas, light hydrocarbon gas and other gas measurement. Smart integrated gas turbine flow meter is a kind of precision flow measuring instrument. It can be used to measure the flow and total amount of liquid with the corresponding flow totalizer and on-site display meter. Smart integrated gas turbine flowmeters are widely used in the measurement and control systems in the fields of petroleum, chemical engineering, metallurgy, and scientific research. Especially suitable for the measurement of natural gas, dry gas, compressed air, etc. Gas turbine meter installation requirements: 1. Before installing the gas turbine flowmeter, the pipeline shall be purged clean to prevent the iron scrap of the residue from affecting the normal operation of the flowmeter. 2. Before the gas turbine flowmeter is installed, when the turbine is blown with a micro-air flow, the turbine can rotate flexibly, there is no irregular noise, the count rotation is normal, and there is no discontinuity, and the gas turbine flowmeter can be installed and used. The gas turbine flowmeter sensor is a thrust bearing type cemented carbide bearing, which not only ensures the accuracy, but also improves the wear resistance. Moreover, the gas turbine flowmeter has the characteristics of simple structure, firmness, and easy assembly and disassembly. 3 , Gas Turbine Flowmeter When installing flanges and pipe flanges should be added in the middle of the gasket. 4. The filter should be installed before the smart integrated gas flowmeter. If the gas quality is dirty, an oil filter should be installed. The filter and the flowmeter must not be directly connected. 5 , gas turbine flow meter before and after installation should be added to the valve. 6. There should be no protruding connection in the pipeline at the flange joint. 7. When the gas turbine flowmeter is installed, the smart integrated gas turbine flowmeter must not be directly welded at its inlet and outlet flanges so as not to burn the internal parts of the flowmeter. 8. The gas turbine flowmeter should be installed in a location that is easy to maintain, has no strong electromagnetic field interference, no mechanical vibration, and no thermal radiation. 9. The gas turbine flowmeter should not be used in situations where the flow rate is frequently interrupted and there is a strong pulsating flow or pressure pulsation. 10. When the gas turbine flowmeter is installed outdoors, the upper part shall be covered to prevent the rainwater from immersing and the sun exposure from affecting the service life of the flowmeter. 11 , gas turbine flowmeter can be installed horizontally or vertically, the direction of fluid flow should be consistent with the direction identified on the shell, in the upstream of the flowmeter should ensure that there is not less than 10Dn of the straight section, after the table is not less than 5Dn of the straight section. 12 , in order to not affect the normal fluid delivery, it is recommended to install the bypass line, in normal use must close the bypass valve. Elbow,Y-pipes,mufflers,stacks,brackets NINGBO YINZHOU M-OX AUTOPARTS CO.,LTD , https://www.mountxin.com
