How Are Parts Made Using Progressive Die Stamping?

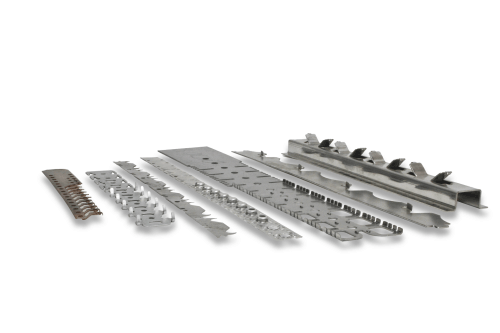

Progressive die stamping is a sophisticated manufacturing technique that involves guiding a continuous strip of metal through multiple workstations within a die. Each workstation performs specific operations—such as cutting, bending, and shaping—to gradually transform raw metal into complex, high-precision components. This method is particularly popular across industries like automotive, electronics, and medical devices, thanks to its ability to produce large quantities of consistent parts quickly.

Understanding Progressive Die Stamping

In a typical progressive die stamping operation, there are several key steps:

1. First, the die is carefully installed in a stamping press. Proper alignment ensures smooth operation during the press's upward and downward movements.
2. The metal strip is fed through the die, where each press stroke carries out precise cutting and forming tasks. Some dies even have mechanisms to automatically remove excess material, enhancing automation.
3. After each step, the feed advances the metal strip to the next workstation, where a different operation is performed until the desired part is complete.
4. Finally, at the last workstation, the finished part is separated from the feedline and prepared for further processing or assembly.

Learn more about our in-house tool and die manufacturing capabilities here.

From Raw Material to Finished Product

The journey of a part through progressive die stamping includes several critical stages:

Design and Engineering

Before production begins, skilled engineers use advanced software to design the progressive die. Every punch, bend, and hole is meticulously planned to maximize efficiency while minimizing waste. These designs are then tested virtually to ensure optimal performance before moving to physical prototyping.

Machining the Dies

Once the design is finalized, computer-controlled machines (CNC) craft the die blocks with extreme precision. Each block is rigorously inspected to guarantee flawless execution before being approved for full-scale production.

Heat Treatment and Finishing

To enhance strength and durability, parts often undergo heat treatment processes. This involves heating the material above its critical transformation point and rapidly cooling it to improve hardness and dimensional stability. Additional finishing techniques like grinding may also be applied to achieve superior surface quality.

Assembly and Testing

Assembling the die requires precision tools and meticulous attention to detail. Once assembled, the die is thoroughly tested under real-world conditions to confirm its reliability and performance. Any issues detected during testing are addressed immediately to prevent delays later on.

Mass Production

With everything in place, the die is mounted onto a high-speed press where it works tirelessly to churn out identical parts at impressive rates. Thanks to the efficiency of progressive die stamping, companies can meet tight deadlines without sacrificing quality.

Applications Across Industries

Progressive die stamping plays a vital role in countless industries. For instance:

• Automotive manufacturers rely on this process to produce critical components like engine mounts and suspension parts.
• Electronics firms use progressive dies to create intricate connectors and housings for their products.
• Medical device companies benefit from the accuracy and repeatability offered by progressive die stamping when crafting delicate surgical instruments.

Real-World Examples

At ESI, we've had the privilege of working on diverse projects spanning multiple sectors:

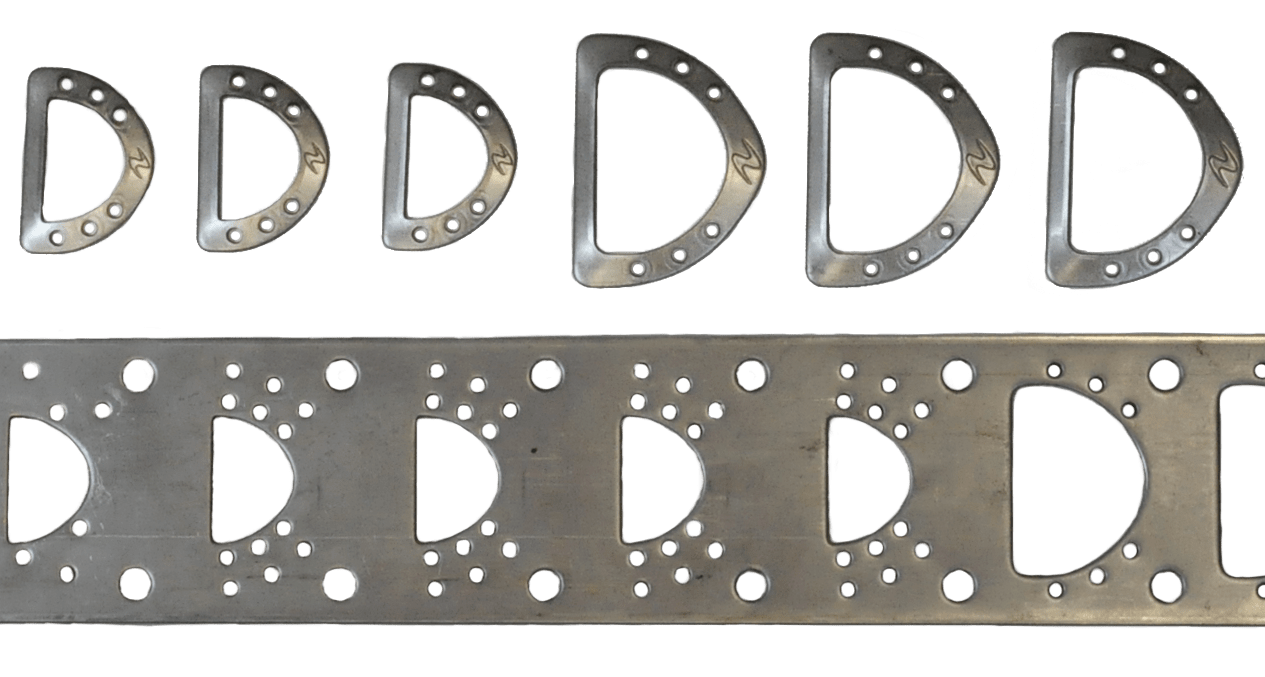

• For Aqua Lung, we developed a custom D-ring solution for their diving vests. By optimizing the design, we managed to reduce material usage significantly, resulting in cost savings for our client.
• Another project involved creating seismic cable restraints for building protection. Within just eight weeks, we produced 20,000 units while improving their finish and ensuring compatibility with cables.
• A push-button lock manufacturer approached us seeking better consistency in their pre-plated cover plates. Through refined processes, we achieved tolerances within 0.002 inches, saving them $70,000 annually.

Why Choose Progressive Die Stamping?

With decades of experience in metal stamping, assembly, and mission-critical part production, ESI stands out as a trusted partner for businesses worldwide. Our commitment to innovation has led us to adopt cutting-edge technologies that not only lower costs but also elevate product quality. Whether you need custom solutions or standardized components, we’re here to help bring your ideas to life.
